Herman Rupp, 1793 Lehigh Valley



Herman Rupp was born in 1756 and died in 1831. Herman worked his entire career as a gunsmith in the Lehigh Valley. Therefore his work is not a combination of different schools as with many of the other builders who moved from region to region throughout their careers. His rifles are true to the region in which he was born.

Herman Rupp rifles share several distinct features. On most of his rifles, the wood on the side flats just barely reach past the lower corner of the octagon, instead of reaching up to the centerline of the barrel as we have been trained is the proper way to build a rifle. Herman Rupp also used a low profile and grooved nosecap with minimal decoration, the classic Lehigh Lady of Liberty inlay ahead of the trigger guard, and his distinctive domed lid patchbox. Many Lehigh rifles have the characteristic wrist which is wider than tall and has the double step.

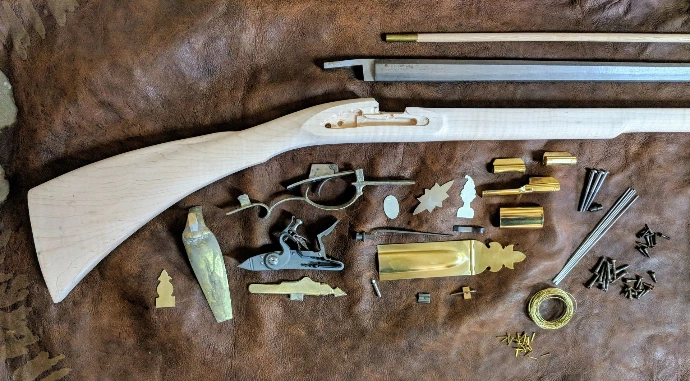

We are offering the most accurate Herman Rupp parts set on the market.


Standard Specifications

This kit can make a wonderful Jonathan Rupp rifle by changing the patchbox to 10960 or 10320


Swamped Octagon barrel
  • 44" long "A" weight with a 5/16" ramrod and inlet for Golden Age Lock
  • 44" long "B" weight with a 3/8" ramrod and inlet for Dale Johnson Lock
  • 44" long "C" weight with 3/8" ramrod and inlet for Dale Johnson Lock
Octagon to Round barrel
  • 42" long "B" weight (Special light profile) with a 3/8" ramrod and inlet for Dale Johnson lock.
Butt width x height
  • 1-5/8" x 5" (these sizes are generous to allow for personal modifications)
Lock Area1-1/2" x 6 1/2 "
Width across lock face1-9/16"
Drop at the heel4 1/4"
MountingsOrder Number
Lock40070
TriggerTR-RUPP
ButtplateBP-RUPP-B (Brass)
TriggerguardTG-RUPP-B (Brass)
Rear Thimble13880 (Brass)
Upper Thimbles13820 (Brass)
SideplateSP-RUPP-B (Brass)
Rupp Toeplate11436 (Brass)
Nosecap12860 (Brass)
Rupp Patchbox10850 (Brass)
Release CatchPBS2
Front Sight16495 (Silver Blade)
Rear SightRS-LH
Wrist Inlay, top25830 (Ger. Silver)
Cheek Inlay25850 (Ger. Silver)
InlayIN-GS-110 Indian head in front of TG
Under Lugs27661 (3 pcs) (will be different for oct/round barrels)
Pin StockPINSTOCK
Tang Screw16450 8-32 thread
Lock Bolts(2) 19630 8-32 thread
Wood Screws16400 8 x 1"
Wood Screws16405 6 x 3/4"
G. S. tacks25450 pack of 10
Brass tacks25453 pack of 50
Wire Inlay12610 (2 ea.) .014" brass

Herman Rupp rifles features a domed lid on his patchboxes, with a wide, flat border where it flushes with the wood.

The octagon-to-round barrels that I have made for this kit are a slightly lighter profile on the muzzle end than Colerain normally supplies. This makes for a much nicer handling gun (especially when shooting trap) These barrels are available in three different calibers as listed:

Caliber options
BLOR45B42C.45 cal. Rifled 42" long
BLOR50B42C.50 cal. Rifled 42" long
BLOR54B42C.54 cal. / 28 gauge smoothbore 42" long

Choose a Colerain 44" swamped octagon barrel from our catalog.

Stocks Available in CM2 grade grain maple
STRU2B44Stock with 44" “B” weight swamped octagon barrel channel
and 3/8" ramrod groove
STRU2B42ORStock with 42" “B” weight swamped octagon to round barrel channel
and 3/8" ramrod groove
Stocks Available in CM4 grade “full curl” maple
STRU4A44Stock with 44" “A” weight swamped octagon barrel channel
and 5/16" ramrod groove - Golden Age lock
STRU4B44Stock with 44" “B” weight swamped octagon barrel channel
and 3/8" ramrod groove - Dale Johnson lock
STRU4C44Stock with 44" “C” weight swamped octagon barrel channel
and 3/8" ramrod groove - Dale Johnson lock
STRU4B42ORStock with 42" “B” weight swamped octagon to round barrel channel
and 3/8" ramrod groove - Dale Johnson lock
Stocks Available in Walnut
STRUWA44Stock with 44" “A” weight swamped octagon barrel channel
and 5/16" ramrod groove - Chambers Golden Age Lock inlet
STRUWB44Stock with 44" “B” weight swamped octagon barrel channel
and 3/8" ramrod groove - Chambers Dale Johnson Lock inlet
STRUWC44Stock with 44" “C” weight swamped octagon barrel channel
and 3/8" ramrod groove - Chambers Dale Johnson Lock inlet
STRUWB42Stock with 42" “B” weight swamped octagon to round barrel channel
and 3/8" ramrod groove - Chambers Dale Johnson Lock inlet
